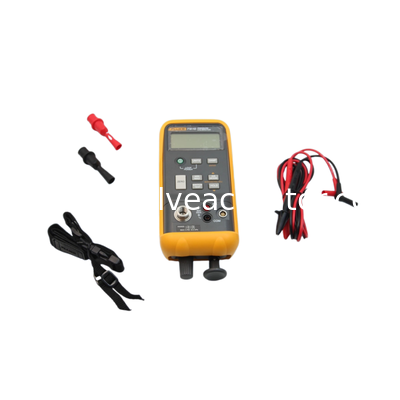

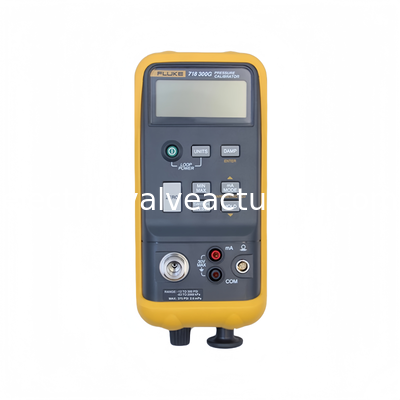

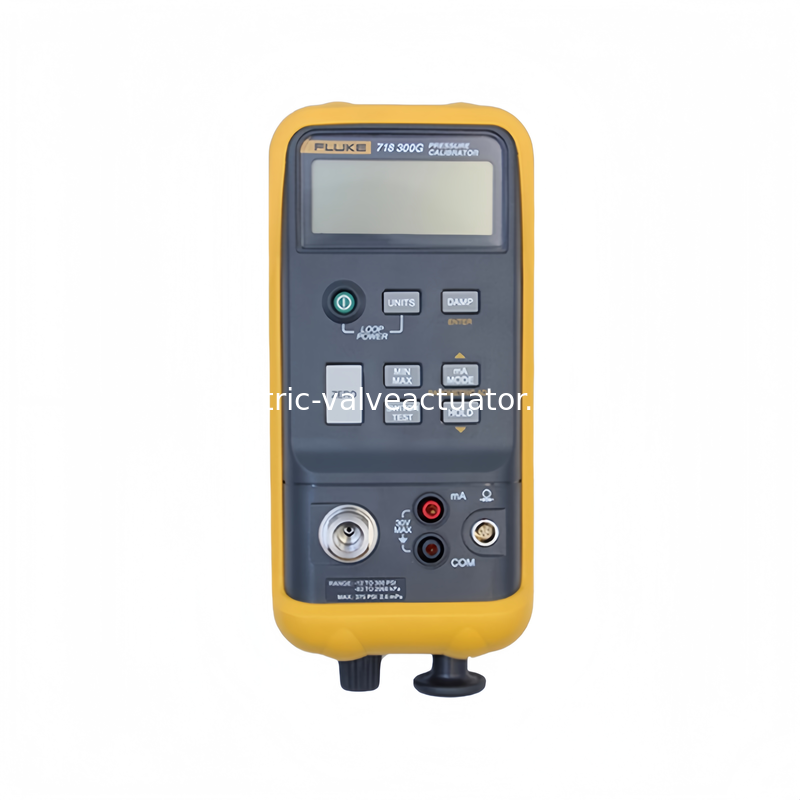

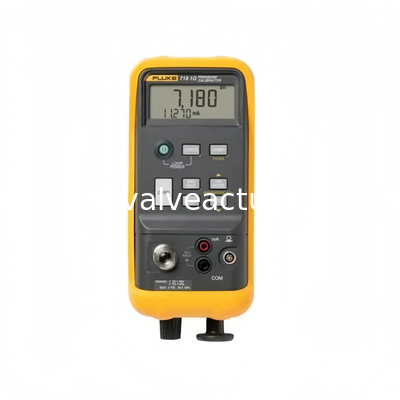

Fluke 718 Series Pressure Calibrator | Industrial Pressure Calibration Instrument

Подробная информация

Место происхождения:

OEM

Диапазон измерения:

От 0 мА до 24 мА

Разрешение:

0,001 МАМЫ

Точность:

0,015% + 1 счет

Максимальное напряжение:

30 Вольт (в нерабочем состоянии)

Температура:

-40 °C - 60 °C

Рабочая температура:

-10 °C - 55 °C

Упаковывая детали:

Новая оригинальная коробка

Описание продукта

Fluke 718 Series Pressure Calibrator

Industrial pressure calibration instrument designed for precision measurement and calibration applications.

Key Technical Specifications

Model	Range	Resolution	Overpressure
Fluke 718 1G	-1 psi to 1 psi -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)	0.001 psi, 0.001 mbar	5X Full Scale
Fluke 718 30G	-12 psi to 30 psi -850 mbar to 2 bar (-83 to 206.84 kPa)	0.001 psi, 0.1 mbar	2X Full Scale
Fluke 718 100G	-12 psi to 100 psi -850 mbar to 6.895 bar (-83 to 689.48 kPa)	0.01 psi, 1 mbar	2X Full Scale
Fluke 718 300G	-12 psi to 300 psi -850 mbar to 20.68 bar (-83 to 2068.42 kPa)	0.01 psi, 1 mbar	375 psi, 25 bar

Pressure Module Compatibility

Fluke 718 Series with 75OP Series Pressure Modules:

Additional Features

Built-in Air Pump: Functions include 0, minimum, maximum, hold reading, damping
Supported Pressure Units: psi, in H₂O (4°C), in H₂O (20°C), cm H₂O (4°C), cm H₂O (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm²
Loop Power Supply: 24Vdc range with ±10% accuracy
Current Measurement: 0 to 24mA range with 0.001mA resolution and 0.015% +1 digit accuracy

Medium compatibility depends on pressure module specifications. Overpressure protection varies by model and configuration.
