High Energy Ignition Gun for Gas/Oil Boiler High Performance Boiler Ignition System for Industrial Burner

Наименование марки:	OEM
Номер модели:	серия XDZ
МОК:	1 комплект
Условия оплаты:	Т/Т
Способность к поставкам:	500

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Упаковывая детали:

Деревянная упаковка

Поставка способности:

500

Выделить:

high energy ignition gun for boiler

industrial burner ignition system

gas oil boiler ignition gun

Описание продукта

High Energy Ignition Gun for Gas/Oil Boiler

High Performance Boiler Ignition System for Industrial Burner

PIVOT RAIZIN High Performance Ignition System Intensifire

Standard Type Soft Rod Explosion Proof High Energy Igniting Gun High Performance Ignition System XDZ-1R-l/d B 600～1400V

Product Overview

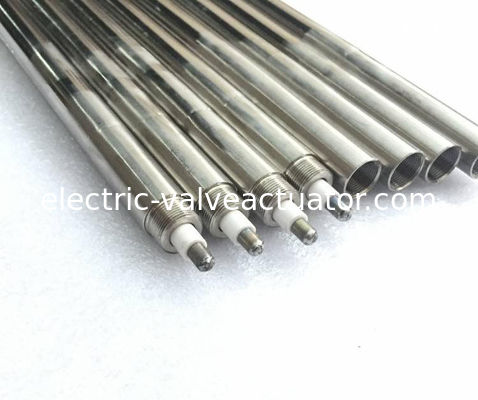

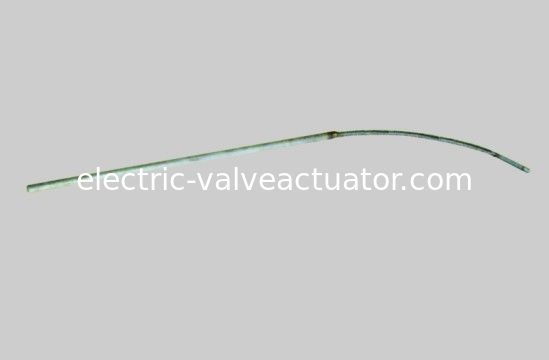

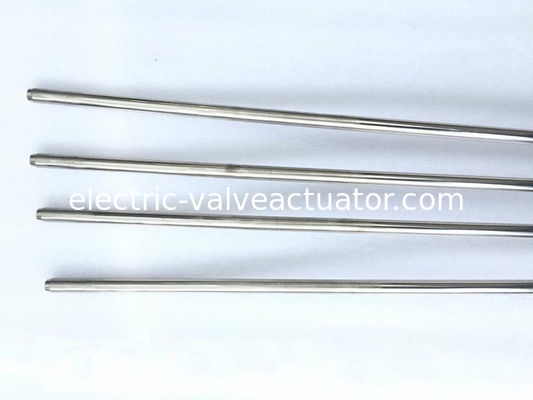

Standard type soft rod explosion proof high energy igniting gun XDZ-1R-l/d B 600～1400V high energy ignition device.

Product Description

Uses ignition cable input voltage DC discharge to form high energy electric spark at the head.

Technical Advantages

Low ignition voltage
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Applications

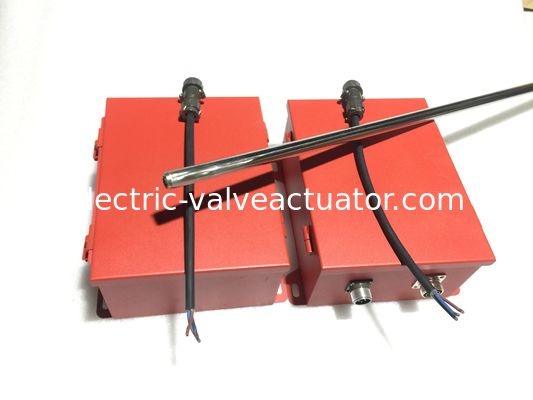

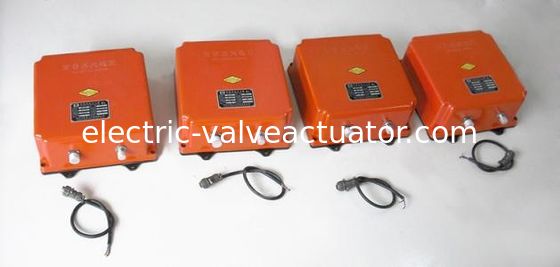

Used as XDH high-energy ignition device assembly.

Product Models and Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table, code "l" is igniting gun length in mm
② In the table, "d" is igniting gun diameter with 14mm, 16mm, 18mm series available
③ Special designs and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250
