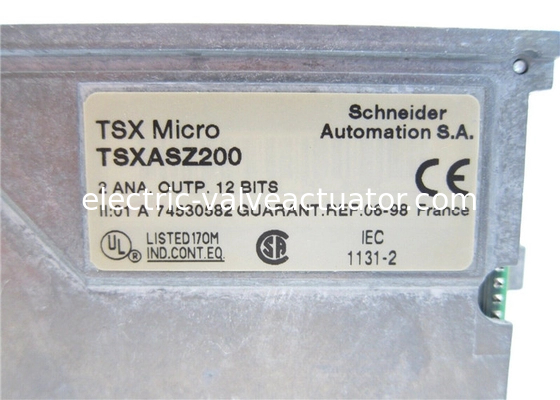

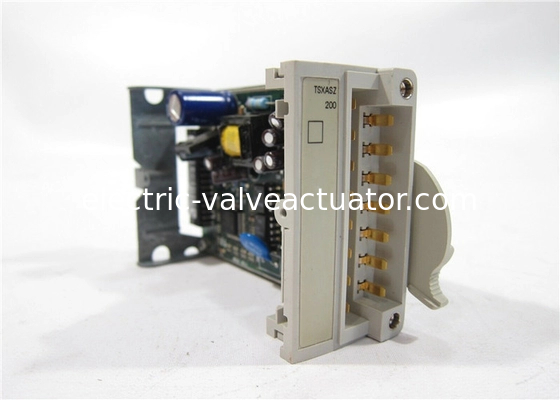

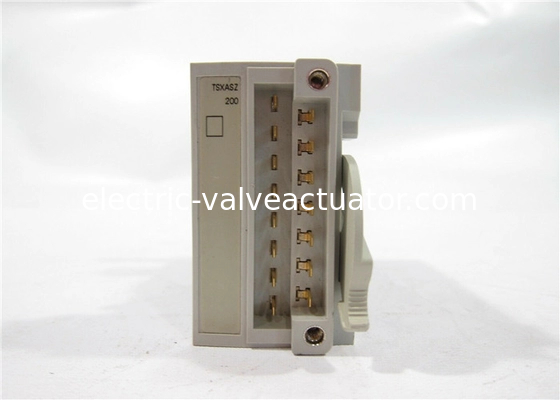

Schneider Electric TSXASZ200 TSX Micro 2 analogue output +- 10 V 0-20 4-20 mA

Schneider Electric TSXASZ200 TSX Micro 2 analogue output +- 10 V 0-20 4-20 mA

Наименование марки: Schneider
Номер модели: TSXASZ200
МОК: 1
цена: Negotiations
Подробная информация
Место происхождения:
Франция
Количество дханнелей:
2
Изоляционное напряжение:
1500 В переменного тока
Упаковывая детали:
Новая оригинальная коробка
Выделить:

Schneider Electric TSX Micro analog output module

,

TSXASZ200 analog output module with warranty

,

Low voltage protection analog output device

Описание продукта
Schneider Electric TSXASZ200 TSX Micro 2 analogue output ±10 V 0-20 4-20 mA
Key Attributes
Number Of Channels 2
Isolation Voltage 1500 V AC
Product Description
  • Main range of product: Modicon TSX Micro automation platform
  • Product type: Analog output module
  • Number of channels: 2
  • Analogue output type: 0...20 mA or 4...20 mA ±10 V
  • Complementary analog/digital conversion: 11 bits + sign 0...20 mA or 4...20 mA, 11 bits ±10 V
  • Measurement resolution: 0...20 mA or 4...20 mA, ±10 V
  • Output load: ≤0.6 Ω (0...20 mA or 4...20 mA), ≥1 Ω (±10 V)
  • Protection type: Open-circuit (0...20 mA or 4...20 mA)
  • Temperature drift: 0.107%/10°C (0...20 mA or 4...20 mA), 0.083%/10°C (±10 V)
  • Current consumption: 150 mA
  • Isolation voltage: 1500 V AC
  • Net weight: 0.2 kg
Compliance Information
  • EU RoHS Directive: Not applicable, out of EU RoHS legal scope
  • China RoHS Regulation: China RoHS declaration
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty

12 months contractual warranty
