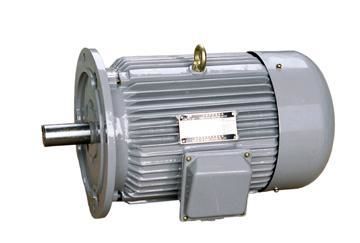

Серии изоляции YD скорости 3 3 типа multi фазируют электрические двигатели YD90L, YD802

Тип

Синхронная скорость (r/min)

1500/3000

1000/1500

750/1500

750/1000

500/1000

1000/

1500/3000

750/1000/3000

750/

1000/1500

500/750/1000/1500

Poles

4/2

6/4

8/4

8/6

12/6

6/4/2

8/4/2

8/6/4

12/8/6/4

Сила (kW)

YD801

0.45/0.55

YD802

0.55/0.75

YD90S

0.85/1.1

0.65/0.85

0.35/0.45

YD90L

1.3/1.8

0.85/1.1

0.45/0.75

0.45/0.65

YD100L1

2/2.4

1.3/1.8

0.85/1.5

0.75/1.1

0.75/1.3/1.8

YD100L2

2.4/3

1.5/2.2

YD112M

3.3/4

2.2/2.8

1.5/2.4

1.3/1.8

1.1/2/2.4

0.65/2/2.4

0.85/1/1.5

YD132S

4.5/5.5

3/4

2.2/3.3

1.8/2.4

1.8/2.6/3

1/2.6/3

1.1/1.5/1.8

YD132M1

6.5/8

4/5.5

3/4.5

2.6/3.7

2.2/3.3/4

1.3/3.7/4.5

1.5/2/2.2

YD132M2

2.6/4/5

1.8/2.6/3

YD160M

9/11

6.5/8

5/7.5

4.5/6

2.6/5

3.7/5/6

2.2/5/6

3.3/4/5.5

YD160L

11/14

9/11

7/11

6/8

3.7/7

4.5/7/9

2.8/7/9

4.5/6/7.5

YD180M

15/18.5

11/14

7.5/10

YD180L

18.5/22

13/16

11/17

9/12

5.5/10

7/9/12

3.3/5/6.5/9

YD200L1

26/30

18.5/22

14/22

12/17

7.5/13

10/13/17

4.5/7/8/11

YD200L2

17/26

15/20

9/15

5.5/8/10/13

YD225S

32/37

22/28

14/18.5/24

YD225M

37/45

26/32

24/34

12/20

17/22/28

7/11/13/20

YD250M

45/52

32/42

30/42

15/24

24/26/34

9/14/16/26

YD280S

60/72

42/55

40/55

20/30

30/34/42

11/18.5/20/34

YD280M

72/82

55/67

47/67

24/37

34/37/50

13/22/24/40
